Dettagli del prodotto
Place of Origin: GuangDong, China
Marca: LINK-PP
Certificazione: ISO9001,SGS,UL,CE,REACH
Model Number: 1-1840727-3
Termini di trasporto & di pagamento
Minimum Order Quantity: 50/500/1000/25K
Prezzo: $0.09-$1.85
Packaging Details: package:60 pcs in 1 tray,22 tray in 1 carton, which is 37*30*30 cm, 10 KGS (1320 pcs) of each carton
Delivery Time: Stock
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3000000/Month
Number of Ports: |
1x1 Single Port |
Gender: |
Female |
Tab Direction: |
Tab Up |
Speed: |
GIGABIT Non-PoE |
LED L / R Color: |
GO/Y |
EMI Tabs: |
Yes |
RoHS Compliant: |
Support |
Operating Temperature: |
0 ~ +70ºC |
Number of Ports: |
1x1 Single Port |
Gender: |
Female |
Tab Direction: |
Tab Up |
Speed: |
GIGABIT Non-PoE |
LED L / R Color: |
GO/Y |
EMI Tabs: |
Yes |
RoHS Compliant: |
Support |
Operating Temperature: |
0 ~ +70ºC |

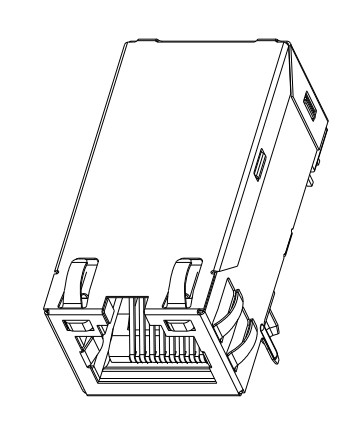

The 1-1840727-3 MagJack is a high-performance integrated connector module (ICM) that combines an RJ45 connector with built-in magnetic components. It is designed specifically for 1000BASE-T Gigabit Ethernet applications. This premium component offers superior signal integrity, enhanced EMI protection, and reliable network connectivity in a compact form factor.
| Specification | Details |
|---|---|
| Connector Type | RJ45 with Integrated Magnetics |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Application | 1000BASE-T, AutoMDIX |
| Contact Finish | Gold |
| Contact Finish Thickness | 50μin (1.27μm) |
| Number of Cores per Jack | 12 |
| Housing Material | Thermoplastic |
| Mounting Type | Through Hole |
| Features | Board Guide, Decoupling Capacitance |
| Operating Temperature | 0°C ~ 70°C |
| Compliance | IEEE 802.3, RoHS |
The 1-1840727-3 MagJack is perfectly suited for a wide range of applications requiring reliable Gigabit Ethernet connectivity:
