Dettagli del prodotto
Luogo di origine: Guangdong, Cina
Marca: LINK-PP
Certificazione: UL,RoHS,Reach,ISO
Numero di modello: 749020020
Termini di trasporto & di pagamento
Quantità di ordine minimo: 400/2000/10K/25K
Prezzo: $0.06-$0.8
Imballaggi particolari: T&R
Tempi di consegna: 3-5 giorni
Termini di pagamento: TT, net30/60/90 giorni
Capacità di alimentazione: 3KK/mese
Numero parte: |
749020020 |
Porti: |
2 porte |
Rapporto di curva: |
1: 1 |
OCL: |
µH 350 |
Tensione di isolamento: |
1500 Vrms |
Ethernet: |
10/100/1000Base-T |
Numero parte: |
749020020 |
Porti: |
2 porte |
Rapporto di curva: |
1: 1 |
OCL: |
µH 350 |
Tensione di isolamento: |
1500 Vrms |
Ethernet: |
10/100/1000Base-T |

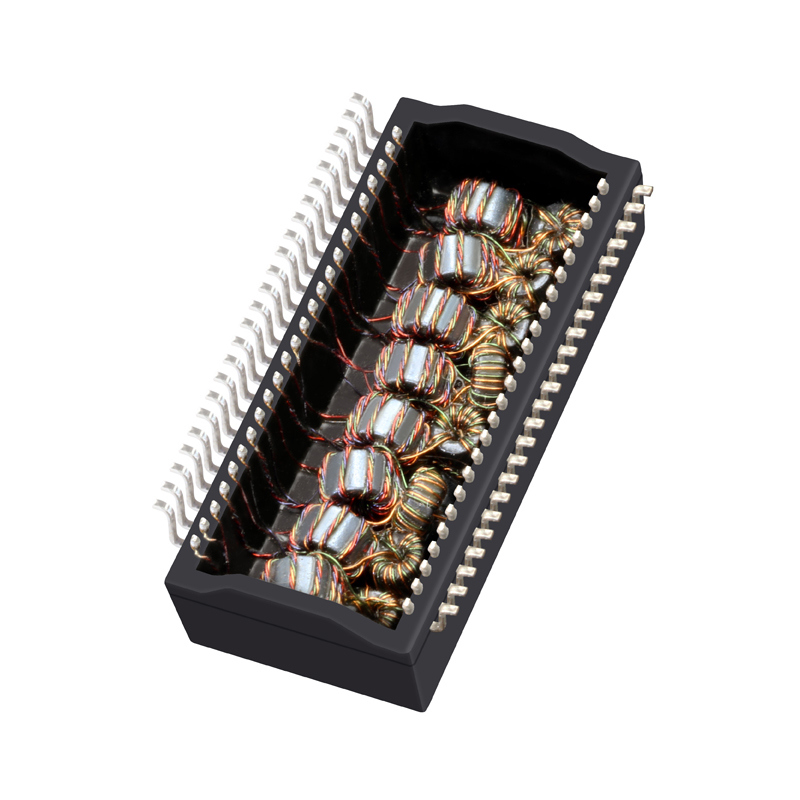

The 749020020 WE-LAN is a high-performance dual-port Ethernet isolation transformer module designed specifically for Gigabit networks (10/100/1000Base-T). It provides excellent signal integrity, EMI suppression, and galvanic isolation — making it ideal for networking devices such as switches, routers, media converters, IP cameras, and NICs.
Key features include:
| Parameter | Value |
|---|---|
| Part Number | 749020020 (sometimes 749020020A) |
| Series | WE-LAN series |
| Application | LAN / Ethernet (10/100/1000Base-T) |
| Ports | Dual (2 ports) |
| Turns Ratio (TX / RX) | 1:1 / 1:1 |
| Inductance (OCL) | ≥ 350 µH (typical, 100 kHz test) |
| Insertion Loss | ≤ 1.0 dB (1 – 100 MHz) |
| Isolation Voltage | 1500 Vrms min |
| Operating Temperature | –40 °C to +85 °C |
| Package / Mounting | SMT / Surface Mount, 48-pin style |
| Dimensions | 27.81 mm × 12.25 mm × 7.7 mm |
| Certifications / Compliance | RoHS, UL (lan transformer spec) |
We can Also Offer These Part numbers below:
| P25-156-P9W9 | LPJU5202b53NL |
| 101110F9017M440ZA | LPJ0025AGNL |
| 8188P-B-1 | LPJE651XBHNL |
| 000-5408-37R-LF3 ( 74092010 ) | LP88026 |
| 000-7090-37R-LF1 | LP1188NLE |
| 000-7093-37R-LF1 | LP5007ANLE |
| 000-7365-30R-LF1 ( 749020020 ) | LP5014ANLE |
| 020181MHAM4M408ZA | LPJU4202A64NL |
| 0810-1X1T-01 | LPJ2012KONL |
| 0810-1X1T-03 | LPJ2026KONL |
| 0810-1x1T-03-F | LPJ2026KONL |
| 0810-1X1T-06 | JH8087-6A57R |
| 0810-1X1T-06 | LPJ2011KONL |
| 0810-1X4T-06-F | JH48087-6A57R |
| 0811-2X4R-28-F | LPJ47212CNL |
| 0811-2X4R-79-F | JH7434FER |
