Dettagli del prodotto
Place of Origin: Guangdong,China
Marca: LINK-PP
Certificazione: UL,RoHS,Reach,ISO
Numero di modello: LPJE8802-3C-M7NLR
Documento: LPJE8802-3C-M7NLR.pdf
Termini di trasporto & di pagamento
Minimum Order Quantity: 400/2000/10K/25K
Prezzo: $0.49
Packaging Details: T&R
Tempi di consegna: in Stock Ship Today
Payment Terms: TT,NET30/60/90 Days
Supply Ability: 3KK/Month
Numero parte: |
LPJE8802-3C-M7NLR |
Categoria: |
Connettore modulare RJ45 (tipo SMD) |
Marchi compatibili: |
Te |
Numero di porte: |
1x1 |
Fermo: |
Giù |
Categoria delle prestazioni: |
Gatto 5 |
Numero di posizioni/contatti: |
8p8c |
Tipo di montaggio: |
Smt |
Opzione LED: |
Senza |
Tab EMl: |
Con |
Scudo di metallo: |
Schermato |
Orientamento: |
Ad angolo retto (entrata laterale) |
Numero parte: |
LPJE8802-3C-M7NLR |
Categoria: |
Connettore modulare RJ45 (tipo SMD) |
Marchi compatibili: |
Te |
Numero di porte: |
1x1 |
Fermo: |
Giù |
Categoria delle prestazioni: |
Gatto 5 |
Numero di posizioni/contatti: |
8p8c |
Tipo di montaggio: |
Smt |
Opzione LED: |
Senza |
Tab EMl: |
Con |
Scudo di metallo: |
Schermato |
Orientamento: |
Ad angolo retto (entrata laterale) |

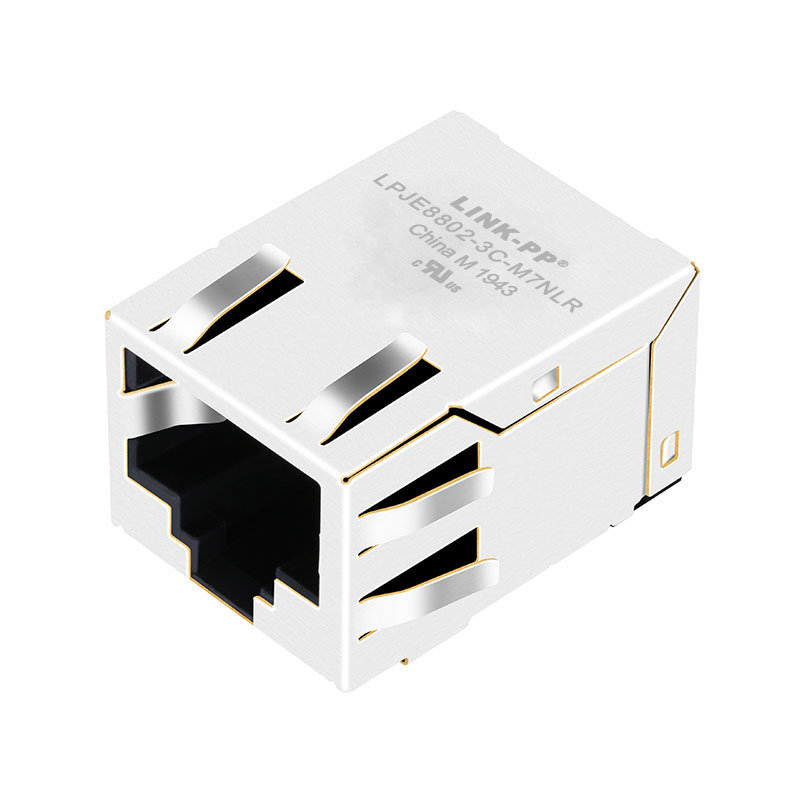

The LPJE8802-3C-M7NLR is a compact, shielded RJ45 8P8C SMD modular jack designed for high-speed Ethernet and communication devices.
It offers superior signal integrity, stable contact performance, and compliance with UL safety standards.
With a latch-down design and SMD reflow compatibility, it is ideal for automated PCB assembly in compact networking equipment.
| Parameter | Specification |
|---|---|
| Voltage Rating | 125V AC |
| Current Rating | 1.5A |
| Contact Resistance | ≤ 20 mΩ |
| Insulation Resistance | ≥ 500 MΩ @ 500V DC |
| Dielectric Strength | 1000V AC (50/60Hz, 1 min) |
| Parameter | Specification |
|---|---|
| Housing Material | PA9T, Black, UL 94V-0 Flame Retardant |
| Contact Material | Phosphor Bronze |
| Contact Plating | Gold ≥ 6 µin (in contact area) |
| Shield Material | Brass, Nickel Alloy Plated |
| Mating Cycles | ≥ 750 Cycles |
| Parameter | Specification |
|---|---|
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
| Soldering Method | IR Reflow Compatible |
| UL Certification | File No. E484635 |
| Stage | Temperature | Duration |
|---|---|---|
| Preheat (TA–TB) | 150–200°C | 60–180s |
| Holding (TL) | 217°C | 60–150s |
| Peak (TP) | 255°C (+0/-5°C) | ≤ 5s |
| Heating Rate | ≤ 3°C/s | |
| Cooling Rate | ≤ 6°C/s | |
| Total Reflow Time (25°C → out of oven) | ≤ 6 minutes |
