Name: LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics
Brand: LINK-PP INT'L TECHNOLOGY CO., LIMITED
SKU: LPJK7436A98NL
Price: 1.06 USD
Availability: InStock

Dettagli del prodotto

Place of Origin: Guangdong,China

Marca: LINK-PP

Certificazione: UL,RoHS,Reach,ISO

Numero di modello: LPJK7436A98NL

Termini di trasporto & di pagamento

Minimum Order Quantity: 400/2000/10K/25K

Prezzo: $0.06-$3.2

Packaging Details: T&R

Delivery Time: Stock

Payment Terms: TT,NET30/60/90 Days

Supply Ability: 3KK/Month

Ottenga il migliore prezzo

Dettagli del prodotto

Descrizione di prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                                                    LPJK7436A98NL, 1×1 RJ45 Connector, RJ45 Connector with with Integrated Magnetics


Numero parte:	LPJK7436A98NL	Tipo di connettore:	RJ45 Jack con magnetica integrata
Marchi compatibili:	Wurth	Numero di porte:	1x1
Fermo:	Su	Velocità dati:	1000Base-T
Poe:	Non	Opzione LED:	Con
Tab EMl:	Con	Tipo di montaggio:	Tht
Tipo di saldatura:	Onda	Intervallo di temperatura operativo:	-40 ° C a +85 ° C.

Numero parte:	LPJK7436A98NL
Tipo di connettore:	RJ45 Jack con magnetica integrata
Marchi compatibili:	Wurth
Numero di porte:	1x1
Fermo:	Su
Velocità dati:	1000Base-T
Poe:	Non
Opzione LED:	Con
Tab EMl:	Con
Tipo di montaggio:	Tht
Tipo di saldatura:	Onda
Intervallo di temperatura operativo:	-40 ° C a +85 ° C.

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics

Key Features:

Single-port 1×1 RJ45 jack supporting 10 / 100 / 1000Base-T Ethernet (Gigabit) speeds.
Low-profile form-factor: package height approx 11.30 mm.
Through-hole (THT) mounting side-entry (“Tab Up” latch orientation) configuration.
Built-in LED indicators: Orange & Green / Yellow option.
Integrated magnetics: 1CT:1CT turns ratio (primary: secondary) for TX/RX channel sets.
Shielded connector with EMI tabs.
Compliance: IEEE 802.3 (Ethernet) standard, RoHS, REACH, UL certifications.
Operating temperature range: –40 °C to +85 °C for many listings (note: confirm with datasheet for your variant)

Specifications:

Category	Parameter	Value
General Information	Part Number	LPJK7436A98NL
	Manufacturer	LINK-PP INT'L TECHNOLOGY CO., LTD
	Product Type	RJ45 Connector with Integrated Magnetics
	Profile	Low-Profile, Side Entry
Electrical Characteristics	Data Rate	10/100/1000 Mbps
	Turns Ratio (TX/RX)	1CT : 1CT
	Hi-Pot Voltage	1500 Vrms
	Insertion Loss	≤ 1.0 dB (1-100 MHz)
	Return Loss	≥ 16 dB (1-40 MHz)
	Crosstalk	≥ 30 dB (1-100 MHz)
Mechanical Data	Mounting Type	Through-Hole (THT), 90° Angle
	Orientation	Tab Up
	Height	11.30 mm
	Shield Type	Full Metal Shield with EMI Tabs
Material & Finish	Housing	PBT + 30% GF, UL94V-0
	Contact	Phosphor Bronze, Gold Plated (6 µin min)
	Shield	SUS 304 Stainless Steel
Environmental	Operating Temp	–40 °C to +85 °C
	Storage Temp	–40 °C to +85 °C
	RoHS / REACH	Compliant
Compliance & Safety	Ethernet Standard	IEEE 802.3 (10/100/1000Base-T)
	UL Certification	E484635
Typical Applications		Compact Routers, IP Cameras, Network Modules, IoT Devices

Applications:

Space-constrained network equipment such as smart cameras, embedded modules, compact routers, and consumer/industrial networking devices.
Devices requiring full Gigabit Ethernet connectivity in low-profile PCB layouts.
Networking products where integrated magnetics simplify board design and EMI/EMC performance.

RJ45 Connector with Integrated Magnetics Details:

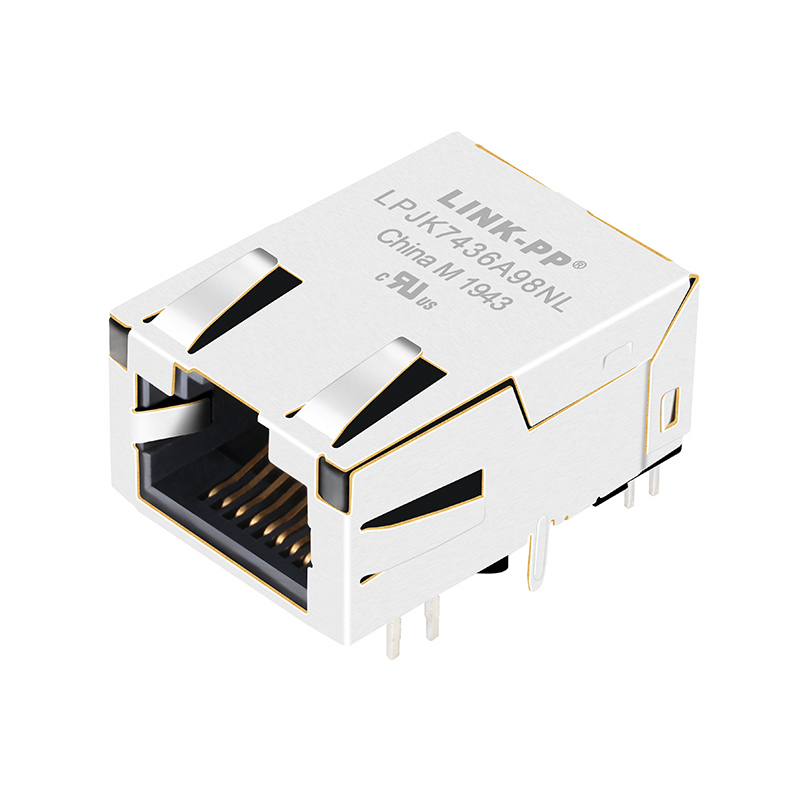

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 0

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 1

LPJK7436A98NL Low-Profile RJ45 Connector with 1000Base-T Magnetics 2

Design & Layout Considerations:

Use the recommended PCB footprint and retaining post layout as per manufacturer drawing (see datasheet).
Ensure side-entry orientation (Tab Up) matches your board design and mechanical constraints.
Verify that the LED orientation and colours match your system design and visual indications.
For thermal design: though rated to –40 °C to +85 °C, ensure that adjacent components and board layout do not exceed the connector’s thermal limits.
Review EMI/EMC shielding strategy: connector’s EMI tabs should be tied to board ground appropriately to ensure optimal performance.
Because of integrated magnetics, carefully consider board stackup and signal integrity around the RJ45 region (especially if high-speed or PoE is involved).
