Dettagli del prodotto
Luogo di origine: Guangdong, Cina
Marca: LINK-PP
Certificazione: UL,RoHS,Reach,ISO
Numero di modello: J9151D
Termini di trasporto & di pagamento
Quantità di ordine minimo: 400/2000/10K/25K
Prezzo: $3.2-$5
Imballaggi particolari: T&R
Tempi di consegna: In borsa entro 3 giorni
Termini di pagamento: TT, net30/60/90 giorni
Capacità di alimentazione: 3KK/mese
Numero di parte: |
J9151D |
Croce al 100%.: |
LS-SM3110-10C |
Serie: |
SFP+ 10Gbase LR |
DOM/DDM: |
Supporto |
Sveppabile a caldo: |
SÌ |
Applicazione: |
Ethernet 10GBASE-LR |
Numero di parte: |
J9151D |
Croce al 100%.: |
LS-SM3110-10C |
Serie: |
SFP+ 10Gbase LR |
DOM/DDM: |
Supporto |
Sveppabile a caldo: |
SÌ |
Applicazione: |
Ethernet 10GBASE-LR |

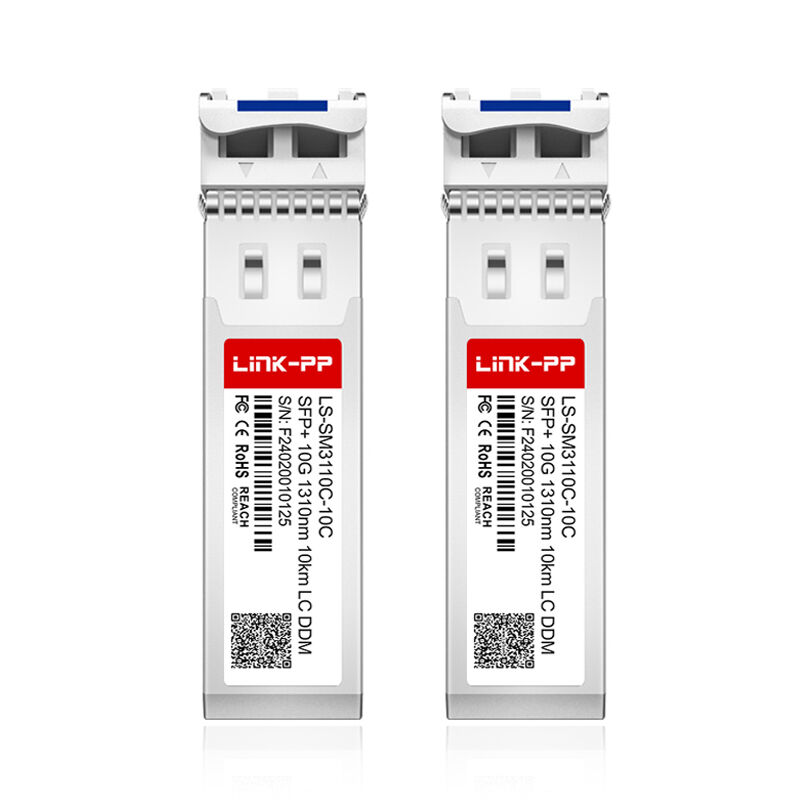

HPE Aruba J9151D 10G SFP+ LR Transceiver, 1310 nm, 10 km SMF, LC Duplex, DDM Supported — High-performance long-reach 10-Gigabit optical module for enterprise and data-center networks.
The HPE Aruba J9151D is a high-performance 10G SFP+ LR (Long-Reach) optical transceiver designed for enterprise switching, data-center interconnects, aggregation networks, and backbone links.
Operating at 1310 nm over single-mode fiber (SMF), the J9151D delivers up to 10 km transmission distance and supports full 10-Gigabit Ethernet performance.
Featuring Digital Optical Monitoring (DOM/DDM), low power consumption, and full compliance with SFP+ MSA and IEEE 802.3ae 10GBASE-LR standards, the J9151D ensures stable and reliable fiber connectivity for mission-critical deployments.
| Parameter | Specification |
|---|---|
| Model | HPE Aruba J9151D |
| Form Factor | SFP+ |
| Application | 10GBASE-LR Ethernet |
| Wavelength | 1310 nm |
| Fiber Type | Single-Mode Fiber (SMF) 9/125 µm |
| Connector |
Duplex LC |
| Parameter | Specification |
|---|---|
| Data Rate | 1.25–10.31 Gbps |
| Max Distance | 10 km over SMF |
| Transmitter Type | DFB Laser |
| Receiver Type | PIN Photodiode |
| Receiver Sensitivity | approx. −14 dBm (typical) |
| Optical Budget | approx. 6 dB (varies by vendor) |
| Parameter | Specification |
|---|---|
| Power Supply | +3.3 V |
| Operating Temperature | 0°C to 70°C (commercial) |
| Compliance | SFP+ MSA, IEEE 802.3ae, IEC-60825-1 laser safety, RoHS |
| DOM/DDM Support | Yes (temperature, voltage, Tx/Rx optical power) |
