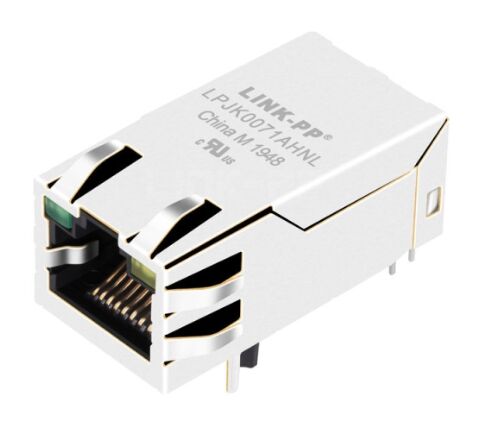

0826-1A1T-23-F 1000BASE-T 1X1 RJ45 Integrated Magnetics Tab Up

Electrical Characteristics of 0826-1A1T-23-F RJ45 MagJack

LED Specifications

Left LED

• Color: Yellow
• Forward Voltage: 2.1V typ. at IF = 20mA
• Dominant Wavelength: 590nm typ. at IF = 20mA

Right LED

• Color: Green
• Forward Voltage: 2.2V typ. at IF = 20mA
• Dominant Wavelength: 570nm typ. at IF = 20mA

0826-1A1T-23-F Gigabit RJ45 Integrated Magnetics Mechanical Specifications

0826-1X2T-23-F Drawing

1. 0826-1A1T-23-F Datasheet - Schematic

2. 0826-1A1T-23-F Datasheet - RECOMMENDED PCB FOOTPRINT

Integrated Connector Module (ICM) Applications

The 0826-1A1T-23-F is ideally suited for a wide range of networking and telecommunications equipment, including:

• Network Interface Cards (NICs)
• Industrial Ethernet Switches and Routers
• Set-Top Boxes and Media Gateways
• Embedded Systems and Single Board Computers (SBCs)
• IoT Hubs and Server Motherboards

Key Features & Benefits

The 0826-1A1T-23-F RJ45 MagJack is a compact 1x1 integrated magnetics connector designed for 1000BASE-T Ethernet applications. Built for stable signal transmission, strong EMI performance, and dependable board-level installation, this MagJack is a practical choice for network equipment that requires a standard-profile through-hole RJ45 connector with integrated magnetics.

Featuring yellow/green LEDs, tab-up port orientation, and EMI tabs, the 0826-1A1T-23-F supports efficient Ethernet port design while helping simplify PCB layout and assembly. With RoHS compliance and an operating temperature range of 0°C to +70°C, it is well suited for a wide range of commercial networking products.

• Gigabit Performance: Fully optimized for 1000BASE-T Ethernet speeds.
• Integrated Magnetics: Eliminates the need for discrete magnetics on the PCB, reducing footprint and improving signal integrity.
• Superior EMI Protection: Equipped with comprehensive EMI tabs to ensure chassis grounding and reduce radiation.
• Integrated Status LEDs: Features a Green/Yellow LED configuration for immediate visual diagnostic of link status and activity.
• Enhanced Isolation: 100% production tested for Hipot (Isolation Voltage) to comply with stringent IEEE 802.3 requirements.
• RoHS Compliant: Fully meets environmental standards for lead-free electronic manufacturing.

0826-1A1T-23-F RJ45 MagJack FAQ

1. What is the 0826-1A1T-23-F used for?

It is used for 1000BASE-T Ethernet interfaces that require an RJ45 connector with integrated magnetics.

2. Does the 0826-1A1T-23-F have LEDs?

Yes. It includes yellow/green LEDs for status indication.

3. What is the mounting type?

It uses a through-hole mount design for stable PCB installation.

4. Is the 0826-1A1T-23-F RoHS compliant?

Yes, it is RoHS compliant.

5. What is the operating temperature range?

The operating temperature range is 0°C to +70°C.
